Here you can find full details of our award-winning range of easy-to-use oscilloscopes, data loggers and RF products along with a wide range of test & measurement accessories.

PicoScope® 2000 Series

  • 2 channel, 4 channel and MSO models
  • 6 instruments in one
  • Ultra-compact design
  • Up to 100 MHz bandwidth
  • Up to 128 MS buffer memory
  • Decode 19 serial protocols as standard
  • USB connected and powered
  • Windows, Linux and Mac software

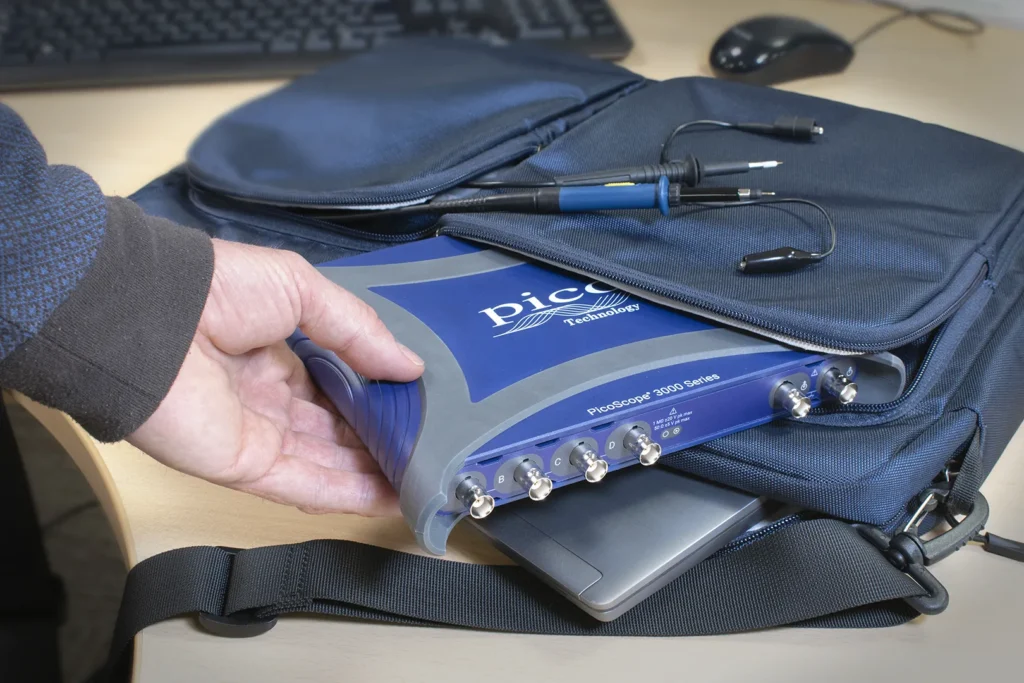

PicoScope® 3000 Series

  • 200 MHz analog bandwidth
  • 1 GS/s real-time sampling
  • 512 MS buffer memory
  • 100,000 waveforms per second
  • 16 channel logic analyzer (MSO models)
  • Arbitrary waveform generator
  • USB 3.0 connected and powered
  • Serial decoding and mask testing as standard
  • Windows, Linux and Mac software
  •

PicoScope® 4000 Series

  • 2, 4 or 8 channels
  • 20 MHz bandwidth
  • 12-bit resolution
  • 256 MS capture memory
  • 80 MS/s sampling rate
  • 80 MS/s AWG update rate
  • 14-bit resolution AWG
  • 1% DC accuracy
  • ±10 mV to ±50 V input ranges
  • 10 000 segment waveform buffer
  •

PicoScope® 5000 Series

  • FlexRes 8 to 16-bit hardware resolution
  • Up to 200 MHz analog bandwidth
  • 1 GS/s sampling at 8-bit resolution
  • 62.5 MS/s sampling at 16-bit resolution
  • Up to 512 MS capture memory
  • 16 digital channels on MSO models
  • 130 000 waveforms per second
  • Built-in arbitrary waveform generator
  • 30 serial decoding protocols as standard
  • Up to 200 MHz spectrum analyzer
  •

PicoScope® 6000 Series

  • Up to 1 GHz bandwidth
  • 8-bit to 12-bit FlexRes® ADC
  • A choice of 4 (up to 1 GHz) or 8 (up to 500 MHz) analog channels
  • Supports up to 16 digital MSO channels
  • 200 ms capture time at 5 GS/s
  • Up to 4 GS capture memory
  • 50 MHz 200 MS/s 14-bit AWG
  • 300 000 waveforms per second update rate
  • PicoScope, PicoLog® and PicoSDK® software included
  •

PicoScope® 9000 Series

  • SXRTO (sampler-extended real-time oscilloscope)
  • 9404-16 and 9402-16: 16 GHz bandwidth, 22 ps transition time and 2.5 TS/s (0.4 ps resolution) random equivalent-time sampling
  • 9404-05 and 9402-05: 5 GHz bandwidth, 70 ps transition time and 1 TS/s (1 ps resolution) random equivalent-time sampling
  • Pulse, eye and mask testing down to 45 ps and up to 11 Gb/s
  • 12-bit 500 MS/s ADCs
  •

Pico Vector Network Analyzer

The PicoVNAs' small size, light weight, and low cost suit them to field service, installation test, OEM embedded, and classroom applications. With their remote automation capability,

PicoSource™ Agile Synthesizer

  • The PicoSource™ AS108 Agile Synthesizer generates signals to meet the needs of both benchtop and integrated module applications. Its broad 300 kHz to 8 GHz frequency range, fast settling and programmable phase, frequency and amplitude match it to a wide range of applications, with the added advantages of low cost, small footprint and 12 to 15 V power requirement.

PicoSource pulse generators

  • Integral 50 Ω SMA(f) Step Recovery Diode outputs
  • < 60 ps transition time
  • Dual 2.5 to 6 V variable amplitude outputs
  • ±1 ns in 1 ps steps timing deskew
  • 200 ns to 4 μs pulse width
  • 1 μs to 1 s internal clock period
  • ​< 3 ps RMS jitter relative to external trigger
  • –20 dB 10 GHz SMA(m-f) attenuator included with Step Recovery Diode outputs
  •

PicoLog® 1000 Series

Designed to meet the needs of a wide range of general-purpose voltage, sensor and transducer logging applications, the PicoLog 1000 Multichannel DAQ Series features independent software-configurable scaling and control outputs, an external terminal board for custom front-end circuitry and a choice of 10 or 12-bit input resolution.

ADC-20 and ADC-24

  • Precision Data Loggers

    Multichannel data loggers offering high resolution, high accuracy and programmable input ranges.

  • Picolog Cloud logo

TC-08 thermocouple data logger

  • Temperature measurement and recording with the TC-08 is very easy — simply plug the TC-08 into a USB port on your computer, plug in your thermocouples, and you are ready to go.

PT-104 High-accuracy data logger

The PT-104 is a four-channel temperature measuring data logger. It offers the ultimate in resolution (0.001 °C) and accuracy (0.015 °C). Along with temperature it can also be used to measure resistance and voltage.

PicoLog CM3 Current Data Logger

The PicoLog CM3 Current Data Logger is a compact, easy-to-use data logger for measuring the current consumption of buildings and machinery.

PicoLog Cloud, Software

PicoLog Cloud, a free upgrade for all PicoLog users. Building on the proven design of PicoLog 6, PicoLog Cloud is a free upgrade that introduces many great new features that expand how your Pico data logger can be used. Both existing and new customers will benefit from the new features

Automotive oscilloscopes

A PicoScope (sometimes known as a labscope) turns your laptop or desktop PC into a powerful diagnostic tool. Think of it as the X-ray machine of diagnostics, letting you see the changing signals inside wires. You can purchase a PicoScope on its own, but most people purchase one of our award-winning Automotive Diagnostics Kits. These money-saving kits contain everything you need – just add a PC.



For Vehicle Manufacturers

Pico Technology is the market leader in PC-based oscilloscopes and dataloggers: our award-winning PicoScopes are used by more than 20 of the world’s leading vehicle manufacturers to improve quality and reduce cost.

Electric Vehicle (EV) Kits and accessories

This exciting new kit has been designed to provide the essential measurement tools you will need for both high and low voltage systems, including insulation testing and safety testing. It is based on the market-leading PicoScope 4425A with PicoBNC+® technology and is supported by brand new EV Guided tests in the PicoScope 7 Automotive software.

PicoDiagnostics NVH kits

Pico's products for Noise, Vibration and Harshness (NVH) testing give technicians the ability to identify and diagnose unwanted vibration and noise sources in a vehicle.

Current clamps

Pico's current clamps are ideal for when you need to measure currents without breaking the circuit.

Pressure Transducer

With the unparalleled resolution and accuracy of the WPS500X Automotive Pressure Transducer you can perform quick and accurate pressure analysis of many automotive systems.

Breakout leads/boxes

Usually the easiest way to capture the signal you require is using a dedicated breakout lead or box.

At Pico we offer a range of solutions to assist you. For some of the most common connectors we have our range of Connector Breakout Leads and, for connectors not covered by this range, you can use our 6-Way Universal breakout leads.

We also offer a range of Fuse Extensions for most common fuse types, and for probing the 16-pin diagnostic socket we offer the TA069 CAN Test Box.

PicoScope Storage Solutions

These products have been designed to be compatible with many toolbox providers.

The foam trays come in two sizes: 185 mm(W) x 390 mm(D), and 370 mm(W) x 390 mm(D) depending on function. Both sizes include a removable 20 mm strip so they will fit in 370 mm deep trays. Available either pre-packed with various kit options, or empty if you have your kit already.

In addition to these foam trays we also have our trolley boom available for arranging your diagnostic station.

If you are looking for a replacement carry case for your Pico kit then please contact our sales team directly .

Pico Auto Accessories

Test Leads, Ignition accessories, 4mm Clips and Adapters, Etc...

Download PicoScope Automotive and PicoDiagnostics software for free

Here you can download the latest versions of our automotive diagnostics software. If you do not yet have a PicoScope you can still download the software free of charge and run it in demo mode. Our development team are working hard to release regular updates to PicoScope 7 Automotive and PicoDiagnostics with additional features and support for future automotive PicoScope products and kits. A list of supported scope models is below:

PicoScope 3223 • PicoScope 3423 • PicoScope 4223 • PicoScope 4423 • PicoScope 4823 • PicoScope 4225 • PicoScope 4425 • PicoScope 4225A • PicoScope 4425A

Note: Test & Measurement scopes such as the PicoScope 2000 Series are not supported within our Automotive software.

PicoScope Automotive App

The PicoScope Automotive app will guide you through your journey in oscilloscope diagnostics. Learn about PicoScope and the different kits available, view our Top ten Guided tests and benefit from tips on how to use your PicoScope. The app includes articles, animations and videos that show how PicoScope benefits you and your business and demonstrate the ease and simplicity of the PicoScope hardware and software.

PicoScope7-beta

Note: This application does not connect to your PicoScope or display waveforms on your phone or tablet.

Version notes

Two versions of PicoScope 7 Automotive are available; Stable and Early Access.

Stable: After thorough testing by the automotive team, this software is judged to be suitable for use in the workshop. It can include features that are in beta where they are robust but not yet complete.

Early Access: This version provides early access to the latest features and fixes so that you can try them out and send us early feedback. This keeps us on the right track and gives us an opportunity to catch and fix any new bugs so that they are less likely to make it into the stable version.

PicoScope 6 should only be used for those features not yet released in PicoScope 7 or by users running 32-bit operating systems. When all features are available in PicoScope 7, PicoScope 6 will then be retired.

PicoScope 7.0.109 Stable

Operating system:Windows
Released:October 26 2022
Release type:Stable
Size:845 MB
Windows downloadDownload PicoScope 7.0.109 Stable for Windows
Operating system:macOS
Released:October 26 2022
Release type:Stable
Size:199 MB
macOS downloadDownload PicoScope 7.0.109 Stable for macOS



PicoScope 7.0.114 Early Access

Operating system:Windows
Released:November 30 2022
Release type:Early Access
Size:860 MB
Windows downloadDownload PicoScope 7.0.114 Early Access for Windows
Operating system:macOS
Released:November 30 2022
Release type:Early Access
Size:231 MB
macOS downloadDownload PicoScope 7.0.114 Early Access for macOS

PicoScope 6 Automotive 6.14.25

Operating system:Windows
Released:June 09 2020
Release type:Legacy
Size:457 MB

This is the latest version of our PicoScope 6 Automotive oscilloscope software. This release is compatible with all automotive PicoScopes. (PicoScope 6 is available for users of non-automotive oscilloscopes.)

Download PicoScope 6 Automotive 6.14.25

Release notes

New features

  • 3 x additional FirstLook™ Automotive Engine Diagnostics Sensor guided tests:
    • Intake manifold pressure pulsations during running
    • Crankcase pressure pulsations during cranking
    • Crankcase pressure pulsations during running
  • 2 x updated WPS500X pressure sensor guided tests:
    • Common rail diesel solenoid injector back-leakage
    • Fuel pressure - negative priming (diesel)
  • PicoDiagnostics: Support for automotive 4225A and 4425A PicoScopes.

Bug fixes

  • Various bug fixes in PicoScope 6 Automotive and PicoDiagnostics

Note: PicoScope 6 Automotive and PicoScope 7 Automotive handle the new PicoScope 4425A and 4225A models differently: Generally a .psdata file can be opened in both PicoScope 6 Automotive and PicoScope 7 Automotive. However, if it has been saved in PicoScope 7 Automotive using a 4425A or 4225A device then PicoScope 6 Automotive cannot recognise the probe settings. In this case, to open a file correctly in PicoScope 6 Automotive, remove any connected PicoScope device and connect a demo device so that PicoScope is in demo mode. You will then be able to load your file.

Supported systems and languages

After downloading the correct file for your operating system, open the installer and follow the on-screen instructions.

PicoLog 6.2.6

Operating system:Windows
Released:November 30 2022
Release type:PicoLog
Size:105 MB
Windows downloadDownload PicoLog 6.2.6 for Windows
Operating system:macOS
Released:November 30 2022
Release type:PicoLog
Size:128 MB
macOS downloadDownload PicoLog 6.2.6 for macOS
Operating system:Linux
Released:November 30 2022
Release type:PicoLog
Size:125 MB
Windows downloadDownload PicoLog 6.2.6 for Linux

Release notes

PicoLog Cloud Logo

PicoLog Cloud® 6.2.6:

We are pleased to announce an update to PicoLog Cloud:

  • Added a new derivative math channel (rate of change)

  • Added new average math channel (used with derivative)

  • The ability to add a custom name for a device
