Automotive oscilloscopes

PicoScope 4425A for active diagnostics

Automotive oscilloscopes and kits

2-Channel Starter Kit

The most affordable way to get started with PicoScope. This entry-level kit includes a high-performance labscope, PicoBNC+ test leads,

4-Channel Starter Kit

Includes PicoBNC+ test leads and key adaptors for instant setup. Supplied in a budget-friendly box or foam for quick tool trolley access.

4-Channel Standard Kit

Offers essential diagnostic tools, including high and low amp clamps for versatile testing. Available in foam for tool trolleys or a carry case with foam cutouts.

4-Channel Advanced Kit

Includes premium breakout leads and a wide range of adaptors for comprehensive vehicle diagnostics. Supplied in foam for tool trolleys or a carry case with foam cutouts.

2-Channel Scope only

Ideal for technicians reusing BNC leads while accessing PicoScope 7 and PicoBNC+ features. Lowest-cost entry with full support for BNC and PicoBNC+ accessories.

4-Channel Scope only

The ideal starting point for upgrading to a market-leading oscilloscope. Use your existing BNC leads now, with 4-channel flexibility and free PicoScope software upgrades for long-term value.

2-Channel Standard Kit

Our most comprehensive 2-channel kit with voltage, current, and breakout adaptors. Ideal if you need full capability from day one. Available in foam or a carry case. For future flexibility, consider the 4-channel 4425A Starter Kit

4-Channel Diesel Kit

Based on the standard kit, optimized with accessories for diesel engines and light-commercial vehicles. Available in foam or a carry case.

4-Channel Master Kit

Includes the WPS500X pressure transducer and a full range of accessories. Expandable for EV and NVH diagnostics. Supplied in foam or two carry cases

4-Channel Assessors Kit

Features the WPS500X for quick engine and system checks. Ideal for classic car assessors, ground care, and more. Available in foam or a carry case.

4-Channel EV Kit

Equipped with high/low amp clamps, insulation tester, 2-pole tester, and HV differential probe. Expandable anytime. Supplied in foam or a carry case.

Off-Highway Entry Kit

Designed around the rugged 4425A PicoScope, this kit includes clips, probes, breakout leads, and current clamps—ideal for diagnosing off-highway and heavy-duty vehicles.

Off-Highway Elite Kit

Includes dual WPS600 hydraulic transducers plus all tools from the Expert kit—ideal for comprehensive diagnostics on off-highway and heavy-duty vehicles

Off-Highway Expert Kit

Adds more breakout leads and the WPS500X pressure transducer for advanced diagnostics on engine, exhaust, and fuel systems. Supplied in a carry case.

8-Channel Professional Kit

Adds BNC leads, adaptors, and a third current clamp to the 4823 for full 8-channel use. Matches Advanced kit capability, minus PicoBNC+. Supplied in a foam carry case.

8-Channel Scope only

Ideal for training, design, or complex diagnostics. Offers 8 channels with common ground, 50V input range, and built-in signal generator. Attenuators needed for high-voltage signals.

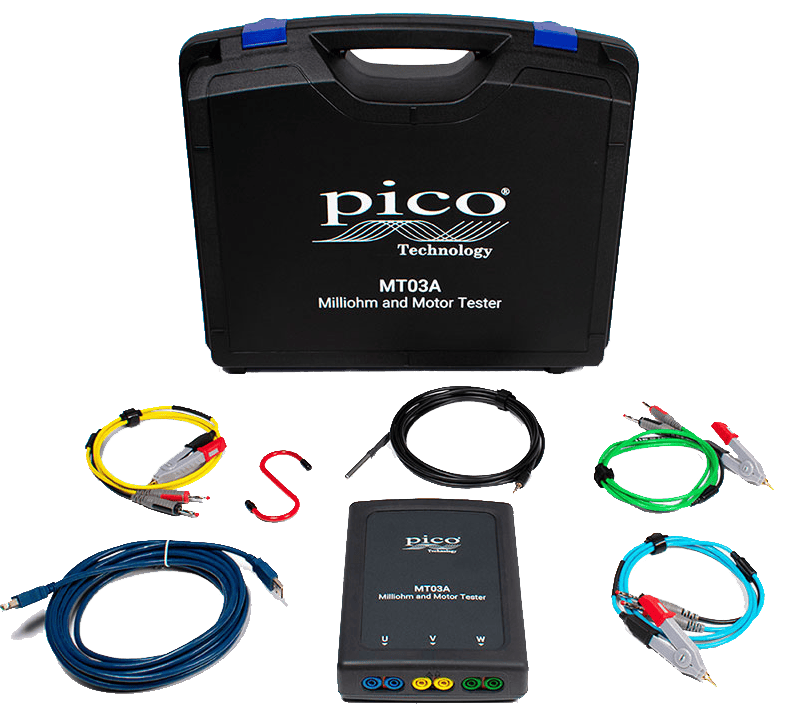

MT03A Milliohm and Motor Tester kit

A complete 3-phase motor winding resistance test in less than one minute!

The MT03A Milliohm & Motor Tester is a revolutionary device capable of changing the way low-resistance testing is performed. The MT03A offers resistance testing of all windings on a 3-phase motor in under a minute, producing highly accurate results that can automatically compensate for temperature using the included sensor.

Specifications



Resistance measurement rangeAutoranging up to 2 Ω
Resistance resolution10 µΩ
Resistance accuracy (typical)±(0.5% + 100 µΩ)
Temperature resolution0.2 °C (0.36 °F)
Temperature accuracy (typical)±0.5 °C (0.9 °F)
Input protection±30 V
Weight<0.5 kg
Dimensions190 x 141 x 42 mm
ConnectionUSB (4.5 m USB2 cable supplied
PC requirementsWindows 10 or 11 (64-bit application)

Electric Vehicle (EV) Kits and accessories

This exciting new kit has been designed to provide the essential measurement tools you will need for both high and low voltage systems, including insulation testing and safety testing. It is based on the market-leading PicoScope 4425A with PicoBNC+® technology and is supported by brand new EV Guided tests in the PicoScope 7 Automotive software.

What’s included in the Kit?

  • PicoScope 4425A with PicoBNC+
  • 3 x PicoBNC+ 2000A current clamps
  • 4 x PicoBNC+ Premium test leads
  • PQ345 PicoBNC+ 1400V Differential Probe Kit
  • PicoBNC+ x10 scope probe
  • PicoBNC+ Resistance lead
  • PicoBNC+ COP probe
  • PicoBNC+ 60 A clamp
  • Pico Insulation tester with PC link
  • Pico Two-pole voltage tester for 0 V potential

PicoDiagnostics NVH kits

Pico’s products for Noise, Vibration and Harshness (NVH) testing give technicians the ability to identify and diagnose unwanted vibration and noise sources in a vehicle.

Available Configuration

  • NVH kitNVH interfaceAccelerometerMagnetMicrophoneExtension cablePicoScope 4425A
    Essentials Starter NVH Kit111111
    Essentials Standard NVH Kit222221
    Essentials Advanced NVH Kit444441
    Starter NVH Kit111110
    Standard NVH Kit222220
    Advanced NVH Kit444440
