Tektronix Oscilloscopes

Industry-Leading Test and Measurement Products

High end Oscilloscopes and Probes

About Tektronix

Tektronix are the measurement insight company committed to performance, and compelled by possibilities. Tektronix designs and manufactures test and measurement solutions to break through the walls of complexity, and accelerate global innovation. Together Tektronix empower engineers to create and realize technological advances with ever greater ease, speed and accuracy. Tektronix solutions have supported many of humankind’s greatest advances of the past 70 years. Health. Communication. Mobility. Space. With offices in 21 countries, Tektronix are committed to the scientists, engineers and technicians around the world who will define the future.

Tektronix product ranges include:

  • Oscilloscopes and Probes
  • Signal Generators
  • Spectrum Analyzers
  • Parameter Analyzers
  • Optical Modulation Analyzers
  • Frequency Counters
  • Source Measure Units
  • DC Power Supplies
  • DC Electronic Loads
  • DC Bidirectional Supplies
  • Digital Multimeters
  • Data Acquisition and Switching

Oscilloscope

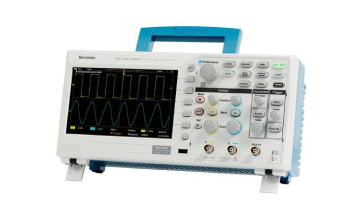

TBS1000C 2 Channel Digital Storage Oscilloscope

Bandwidth: 50 MHz - 200 MHz
Analog Channels: 2
Digital Channels -
Sample Rate: 1 GS/s

TBS2000B Digital Storage Oscilloscope

Bandwidth: 70 MHz - 200 MHz
Analog Channels: 2 or 4
Digital Channels -
Sample Rate: 1 GS/s to 2 GS/s

TBS2000B Digital Storage Oscilloscope

Bandwidth: 70 MHz - 500 MHz
Analog Channels: 2 or 4
Digital Channels: 16 (optional)
Sample Rate: 1.25 GS/s - 2.5 GS/s

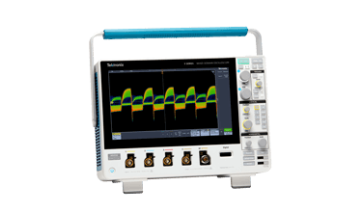

3 Series MDO Mixed Domain Oscilloscope

Bandwidth: 100 MHz - 1 GHz
Analog Channels: 2 or 4
Digital Channels: 16 (optional)
Sample Rate: 2.5 GS/s - 5 GS/s

4 Series B MSO Mixed Signal Oscilloscope

Bandwidth: 200 MHz to 1.5 GHz
Analog Channels: 4 or 6
Digital Channels: Up to 48 (optional)
Sample Rate: 6.25 GS/s

5 Series B MSO Mixed Signal Oscilloscope

Bandwidth: 350 MHz - 2 GHz
Analog Channels: 4, 6 or 8
Digital Channels: Up to 64 (optional)
Sample Rate: 6.25 GS/s

5 Series MSO Low Profile

Bandwidth: 500 MHz – 1 GHz
Analog Channels: 8
Digital Channels: Up to 64 (optional)
Sample Rate: 6.25 GS/s

6 Series B MSO Mixed Signal Oscilloscope

Bandwidth: 1 GHz - 10 GHz
Analog Channels: 4, 6 or 8
Digital Channels: Up to 64 (optional)
Sample Rate: 50 GS/s

6 Series Low Profile Digitizer .

Bandwidth: 1 GHz - 8 GHz
Analog Channels: 4 (SMA)
Digital Channels: -
Sample Rate: 25 GS/s

MSO/DPO70000DX Mixed Signal/Digital Phosphor Oscilloscopes

Bandwidth: 8 GHz - 33 GHz
Analog Channels: 4
Digital Channels: 16 (optional)
Sample Rate: 5 GS/s - 100 GS/s

DPO70000SX ATI Performance Oscilloscope

Bandwidth: 13 GHz - 70 GHz
Analog Channels: 1-4
Digital Channels: -
Sample Rate: 50 GS/s - 200 GS/s

MDO3000 Mixed Domain Oscilloscope

Bandwidth: 100 MHz - 1 GHz
Analog Channels: 2 or 4
Digital Channels: 16 (optional)
Sample Rate: 2.5 GS/s - 5 GS/s

MDO4000C Mixed Domain Oscilloscope

Bandwidth: 200 MHz - 1 GHz
Analog Channels: 4
Digital Channels: 16 (optional)
Sample Rate: 2.5 GS/s - 5 GS/s

Oscilloscope Probes

Isolated Probes
  • High-resolution measurements in the presence of common mode signals or noise
  • Up to 1 GHz bandwidth
  • Complete galvanic isolation
  • 1 Million to 1 (120 dB) of common mode rejection at 100 MHz
Optical Probes
  • DPO7OE1/DPO7OE2 – high bandwidth optical probes, DC to 33/59 GHz with broad wavelength support from 750-1650 nm / 1200-1650 nm
  • P6701B/P6703B – DC to 1.0/1.2 GHz with broad wavelength support: 500-950 nm/1100-1650 nm
Power rail Probes
  • Bandwidth up to 4 GHz
  • Offset range up to ±60 V
  • Lowest noise
  • Flexible connectivity
Passive Probes
  • Best-in-class bandwidth up to 1 GHz
  • Best-in-class input capacitance as low as 3.9 pF, which minimizes probe loading effects
  • Rugged and reliable
  • High voltage versions with dynamic range up to 2500 V
High Voltage Differential Probes
  • Dynamic range to ± 6000 V
  • Bandwidth up to 200 MHz
  • Most extensive set of probe accessories
Low Voltage Single-ended Probes
  • Bandwidth up to 4 GHz
  • True signal reproduction and fidelity
  • Low input capacitance: down to < 0.8 pF
  • Small, compact probe heads for probing small geometry circuit elements
Current Probes
  • Easy to use and accurate AC/DC current measurements
  • DC up to 2 GHz
  • Amplitude measurements from 1 mA to 2,000 A
  • Split core and solid core construction
Low Voltage Differential Probes
  • Bandwidth up to 33 GHz
  • Easily measure differential signals
  • TriMode™ probes let you easily switch between differential, single-ended, and common mode
  • High common mode rejection ratio (CMRR)
  • Wide range of probe tips for easier circuit access
