DC Power Supplies

Benchtop and rackmount autoranging power supply

High-Power Test and Measurement Solutions

Tektronix’s EA Elektro-Automatik brand of programmable power supplies and electronic loads are state-of-the-art test solutions. The EA products span conventional and bidirectional DC power supplies to regenerative electronics loads and turnkey DC power racks. The EA solutions are ideal for applications in e-Mobility and Automotive, Energy Storage, Telecommunications, Aerospace, Alternative Energies, and many emerging markets such as fuel cell and hydrogen electrolysis.

EA product line solutions demonstrate expertise to address new applications such as battery module and pack development and quality assurance testing, battery module and pack emulation, electrolysis research, and fuel cell testing and emulation.

With the combination of Tektronix’s leading oscilloscopes, analyzers, and signal sources, combined with the Keithley line of precision instruments, and the EA line of high-power technology, customers can now enjoy precise, flexible, and efficient solutions from Tektronix for all their power engineering needs.

True Autoranging – Advantages for Test

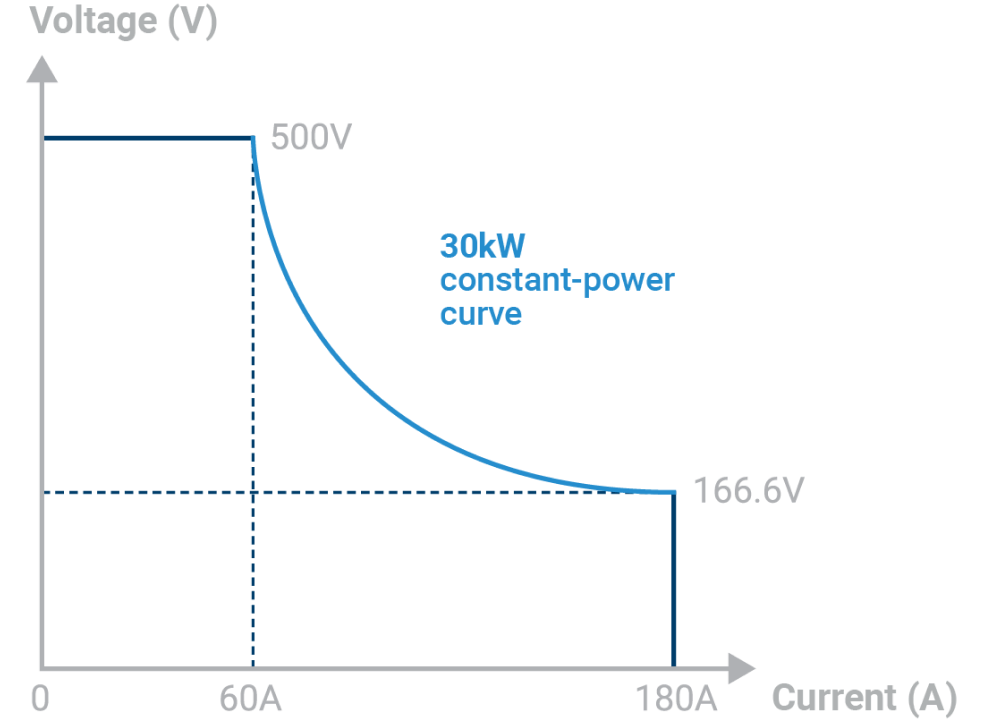

All EA power supplies provide true autoranging giving full power across a larger operating range to test more devices with just one supply. Autoranging enables the power supply to automatically adapt to higher output voltages when there is a smaller current or handle higher currents when there is a lower voltage. EA’s true autoranging can deliver full power down to 33% of rated output voltage.

Save budget and space
No oversizing supply
One supply tests more
Versatile for future tests

Waveform Function Generator

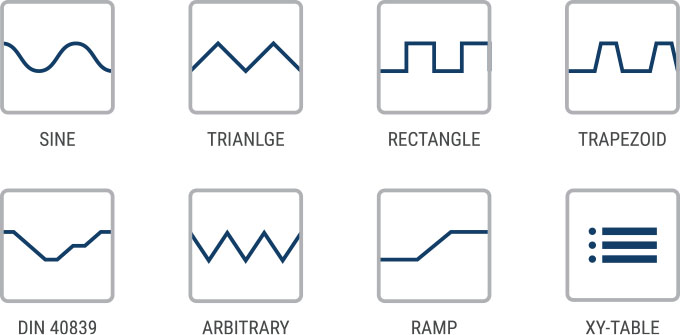

A common requirement for dc power supplies is to deliver the output voltage or current with a waveform other than a straight-line dc signal. EA’s built-in function generator includes options for sine, triangle, square, and trapezoidal waveforms, as well as custom arbitrary waveforms. In addition, the solution offers configuration tools for ramps, UI and IU tables and simulations for fuel cells and photovoltaics.

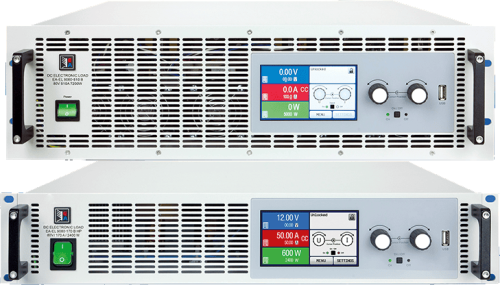

19 Inch slide-in housing

(Series, PS and PSI)

Technical Specifications

Nominal power: 0 – 1000 W to 0 – 30 kW (Systems up to 3840kW)
Nominal voltage: 60V to 2000V
Nominal current: 0-6A to 0-1000A (Systems up to 64000A)

Features

Autoranging
Color Touchscreen
Primary clocked, with autoranging output
Externally controlled via analog and digital interfaces

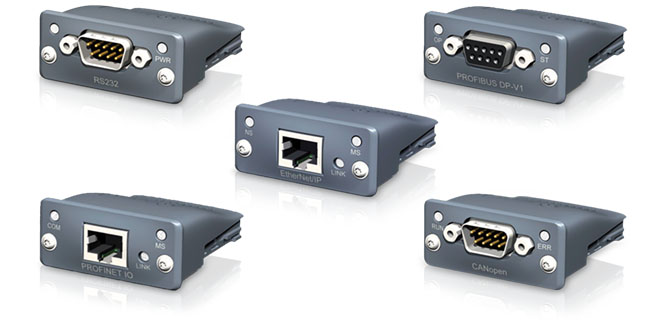

Permanently integrated interfaces and “plug n play” slot
State-of-the-art µ-processor or FPGA control
Modular highly insulated architecture
PV (Solar) Simulation
Battery and fuel cell simulation
function generator sine, rectangle, trapezoid, ramp, arbitrary
Alarm Manager, User Profiles
Suitable for 19″ integration
Analog, Ethernet, USB, CAN, Profibus and many more
Operator Software EA Power Control (Freeware), Multi-Control “App” (license required)
Ethernet / USB / Analog as standard / plug’n’play-Slot for additional interfaces

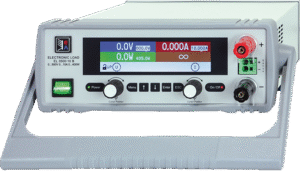

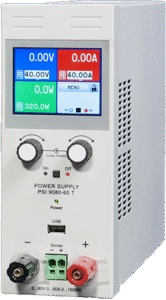

Space Saving Instruments in Desktop/Tower Style

(Series, PS and PSI)

Technical Specifications

Nominal power: 320W, 640W, 1000W, 1500W
Nominal voltage: 40V, 80V, 200V, 750V
Nominal current: 0 to 0-60A

Features

Autoranging
Color Touchscreen
Wide entrance area 90…264V with active PFC
Higher efficiency to 92%
USB standard, Ethernet & Analog optional
LabVIew-Vis
40V-Models according to SELV under EN 60950
Plug’n’play-Slot for USB, USB+LAN or USB+Analog

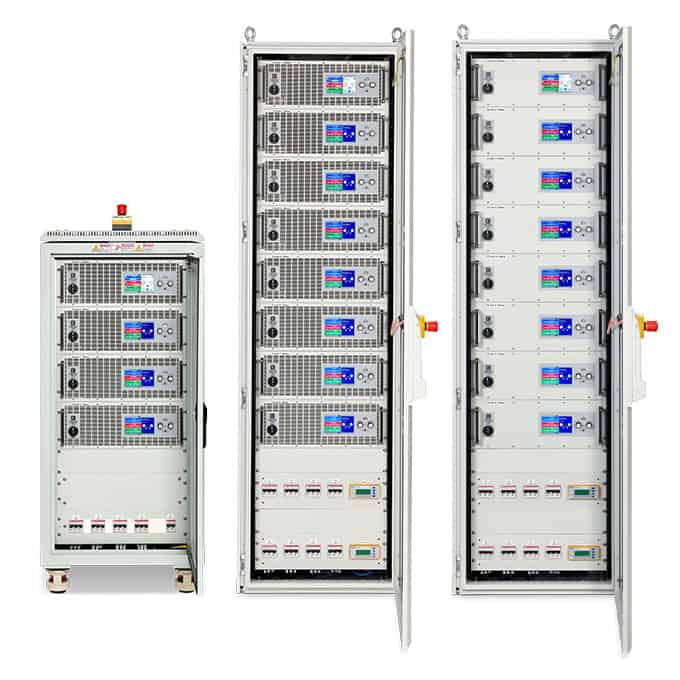

Cabinet System

Modules / Power / Series

Modular rack systems with 42U, 38U, 24U and 15U
Integrable devices in height units 3U, 4U and 6U
- 300 kW in only one 42U rack with 5 units á 60 kW/6U
- 3.84 MW in only 13 racks with up to 64 devices
Integrable series:
- EA-10000
- EA-10000 Industrial
- EA-BT 20000

Features

Select devices and integrate into the rack

New high-performance systems are constantly being developed for the electrification of the world. Associated with this is the testing requirement for the battery packs, fuel cell stacks, solar systems or electrolysis systems (or: electrolysers). With the modular EA rack system you have the possibility to select the suitable devices for your tests and simulations and to integrate them into the modular EA rack system

Power supplies and loads

Configure 3U, 4U and 6U devices into 42U, 38U, 24U and 15U rack systems. Combine EA-10000 and EA-10000 Industrial series programmable power supplies, bidirectional power supplies, or regenerative loads. System performance can be increased by connecting devices in parallel. In a 42U rack with 5 units of 60 kW you can reach 300 kW, for the maximum power of 3.84 MW you can connect up to 64 units in 13 racks.

Application for battery, photovoltaics, electrolysis, fuel cell and many more
For 380 V, 400 V and 480 V AC
Programmable power supplies (PSI, PS, PU), Bidirectional Power supplies (PSB, PSBE, PUB) and regenerative loads (ELR, PUL).
Intuitive operation through the multilingual color TFT touch panel
Function generator
Extensive protective functions (OVP, OCP, OT, …)
USB, Ethernet and analog interface as standard
Plug & Play slot for digital interfaces
All interfaces galvanically isolated
Control software EA Power Control
Simulation software EA Battery Simulator
LabVIEW VI User Library
IVI driver package
DBC-Files
SCPI and ModBus protocol
